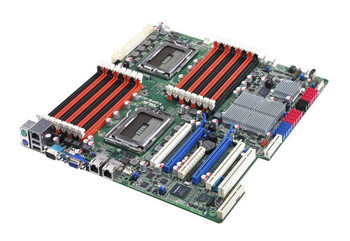

KGPE-D16ASMB4-IKVM | ASUS | Dual Socket G34 AMD Sr5690 + Sp5100 Chipset AMD Opteron 6100/6200/6300 Series Processors Support Ddr3 16X Dimm 6X Sata 3.0Gb/SProduct Details
Product Videos
Custom Field
Form Factor SSI EEB
CPU Socket Type Socket G34
Supported CPU(s) AMD Opteron Processor
Supported CPU Technologies 64-bit
South Bridge Chipset AMD SP5100
Number of Memory Slot(s) 16
Number of Memory Channel(s) 4
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
PC3-12800 (DDR3-1600)
PC3-6400 (DDR3-800)
PC3-8500 (DDR3-1066)
Maximum Installed Memory 256GB RDIMM
Expansion Slots PCI-E x16
PCI-E x8
Expansion Slots Details PCI 32bit/33MHz
PCI-E x16 (Gen2 X8 Link)
PCI-E x16 (Gen2 X16 Link), Auto switch to x8 link if slot 2 is occupied
PCI-E x8 (Gen2 X4 Link)
PCI-E x16 (Gen2 X16 Link)
PCI-E x16 (Gen2 X16 Link), Auto turn off if slot 5 is occupied, For 1U FH/FL Card, MIO
Storage Controller SATA 6.0 Gbps
Storage Controller Details SATA Controller
AMD SP5100
6 x SATA2 300MB/s
PROMISE SW RAID (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 )
SAS/SATA Controller
ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional)
ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional)
ASUS P
On-Board Video Controller ASPEED AST2500
Network Gigabit Ethernet
Connectors/Ports CPU Fan Connector
PS/2 Keyboard
PS/2 Mouse
RJ-45
Serial
TPM Header
USB
Connectors/Ports Details On Board I/O Connector
1 x PSU Power Connector (24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector)
1 x Management Connector , Onboard socket for management card
3 x USB pin header , Up to 6 Devices
1 x Internal A Type USB Por
